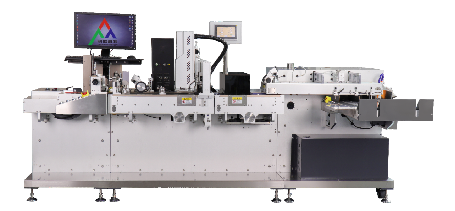

RFID Single Card Ink-Jet Printing Machine -

Functions and Features

1. Functions of dust removal, detection of multiple cards, UV printing, pre-curing, main curing, classification, receiving and counting

2. Servo motor is adopted in all motion mechanism, support stable and high precision feeding.

3. Jet printing and curing are divided into two sections to reduce the interference from two modules to the belt.

Technical Specification

Printing Speed	60~100m/min
Printing Resolution	Printhead direction:600DPI, motional direction:300 - 1200DPI adjustable
Printing Width	54mm extensible
Card Size	0.3mm-3mm(THK) 25mm-200mm(W)
Printing Color	Monochrome, Customized color, Multiple color
Software	Support variable one-dimensional code and two-dimensional code, batch images and PDF documents.
Suitable Printing Material	Copper paper plate, semi-copper plate, part of wool fabric and gloss, etc.
Optional Functions	Color printing, visual detection, waste collection, corona.
Power	AC220-240V 50HZ 2.5KW
Equipment Size	(L)2970(W)810(H)1350mm
