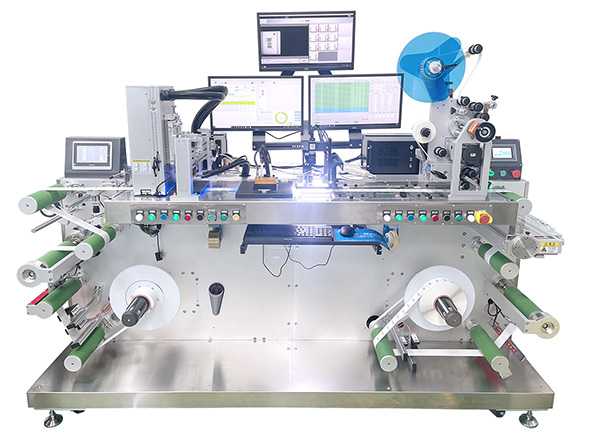

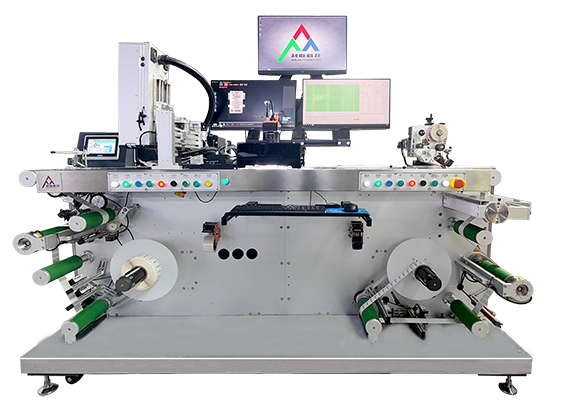

RFID Coil Label Printing & Reading & Writing Detection Machine -

Functions and Features

1. The equipment integrates UV printing and RFID reading & writing detection functions, can shorten production process, improve production efficiency and save labor cost.

2. Printing station functions include dust removal, detection of multiple cards, UV printing, pre-curing and main curing.

3. Reading and writing station has functions of TID detection, writing EPC, reading EPC detection and waste collection.

4. Multi-station RFID reading and writing in parallel, improves the reading and writing effectively.

5. Multi-station collaborative control system ensures the reliability of RFID reading and writing in parallel.

Technical Specification

Printing Speed	10-45m/min
Reading&Writing Speed	500-1200PCS/min
Printing Resolution	Printhead direction:600DPI, motional direction:300 - 1200DPI adjustable
Printing Width	108mm extensible
Card Width	20-200mm
Printing Color	Monochrome, Customized color, Multiple color
Suitable Printing Material	Copper plate paper, semi-copper plate paper, rough and gloss paper, PVC,PP, PE, etc
Printing Content	Support variable one-dimensional code and QR code, batch images and PDF documents.
Optional Functions	Visual detection, freeze picture, error label marking, anti-static, corona,Reading TID before printing
Power	AC220-240V 50HZ 2.5KW
Equipment Size	(L)2700(W)1043(H)1510 mm
